What is Steel Rule Die Cutting?

D. Grosz

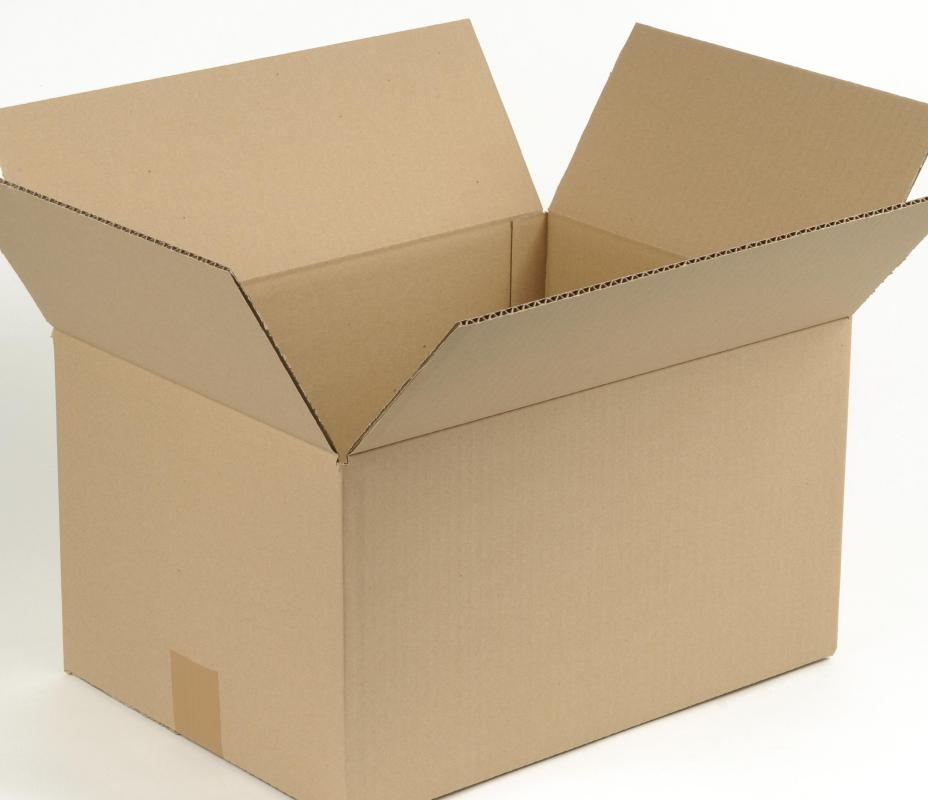

Steel rule die cutting is a common process used to cut a range of sheet materials, including paper, cardboard, rubber and plastic. Most standard cardboard boxes and packages are made using this relatively straightforward technique. In addition to cutting out shapes, it can be used to create creases, perforations and slits.

Steel rule die cutting is a common process that is used to cut a range of sheet materials, including paper, cardboard, rubber and plastic.
Steel rule die cutting is a common process that is used to cut a range of sheet materials, including paper, cardboard, rubber and plastic.

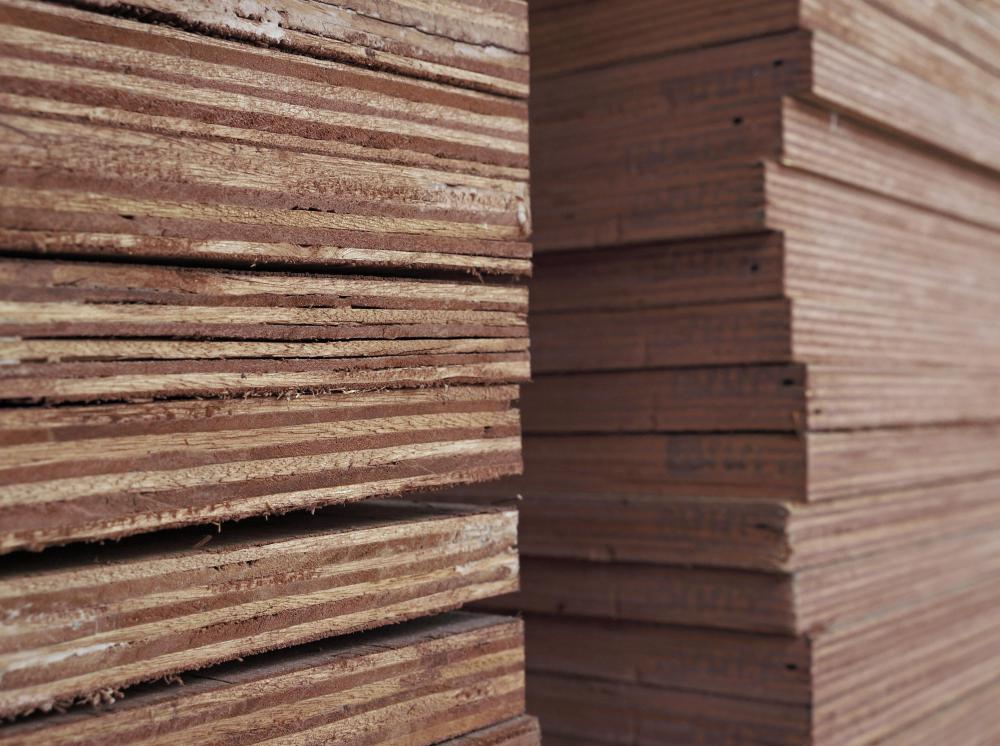

The die is constructed out of a flat base or substrate that is usually made out of high-grade and high-density plywood; the plywood is usually composed of hardwoods, such as maple, and is free from voids or other imperfections. Some special dies may require aluminum or steel substrates. The die-maker uses a special bandsaw or laser cutter to cut precisely positioned slits into the substrate. The steel rule itself is essentially an elongated razor blade made out of hardened steel. The die-maker cuts and bends the steel rule and positions it into the slits in the substrate.

The die is typically made of high-density, high-grade plywood.
The die is typically made of high-density, high-grade plywood.

The final step in creating the die involves the addition of ejection rubber. Rubber pads are adhered to the substrate to help eject the material after it is cut. Without the inclusion of ejection rubber, the material may tend to get stuck amongst the steel rules.

There are all sorts of steel rule. The rule itself comes in a variety of thicknesses that are chosen based on the particular application. There are also several options regarding the cutting edge of the steel rule:

  • A center bevelsteel rule is the most common type of rule and is the most durable configuration. The cutting edge is appropriately centered between the two faces of the rule.
  • A facet bevel rule also has a centered cutting edge, but it is shaped more like a diamond and this tends to provide cleaner cuts.
  • The flush bevel uses a cutting edge that is in line with one of the faces of the rule. The cuts are very clean, but the longevity of this type of rule is poor.
  • A side bevel rule has the cutting edge slightly off center. It has good cut quality as well as good longevity.

Once the die maker has completed the steel rule die, it is immediately ready for production. The die is attached to the top platen of a die cutting press that will provide the force required for the job. Smaller presses may provide 20 tons (18,000 kg) of force, whereas larger ones give over 150 tons (135,000 kg).

The material to be cut is positioned below the die and then the press is actuated. If registration is an issue, the material is positioned against a stop or in a locating nest. The cutting edges of the steel rule penetrate through the material until they come into contact with the bottom platen; the press then reverses and the cut part is exposed. In some applications, a softer material is placed below the material to accept the cutting surfaces of the steel rule. When cutting paper, however, the cutting is performed against special steels designed for the purpose.

Perforations and creases are made with special rule that is positioned on the same die as the cutting rule. Creases sometimes require a secondary die called a matrix, which is positioned on the opposite side of the press and is aligned with the creasing rule; when configured properly, very crisp creases can be created in all sorts of materials. Sometimes, heated platens are used when plastic parts are being fabricated to improve the quality of the creases and cuts.

In high-volume die cutting operations, fully automatic machines are used. In these machines, the material to be cut is automatically fed into the press and located in the proper position. The steel rule die is pressed through the material and the pressure is released. The cut piece is removed along with any scrap material, and the next piece is indexed to repeat the process.

Steel rule die cutting can also be used for cutting more exotic materials. Thick foams, carpet and rubber can also be cut with this method. This is a relatively inexpensive and effective way of cutting soft sheet goods.
